Exterior PU deck system
- Prime prepared concrete with 2 coats of Rayson PrimeBond S30
- Finish with 2 coats of Rayson UraForce SB72 UV-stable polyurethane

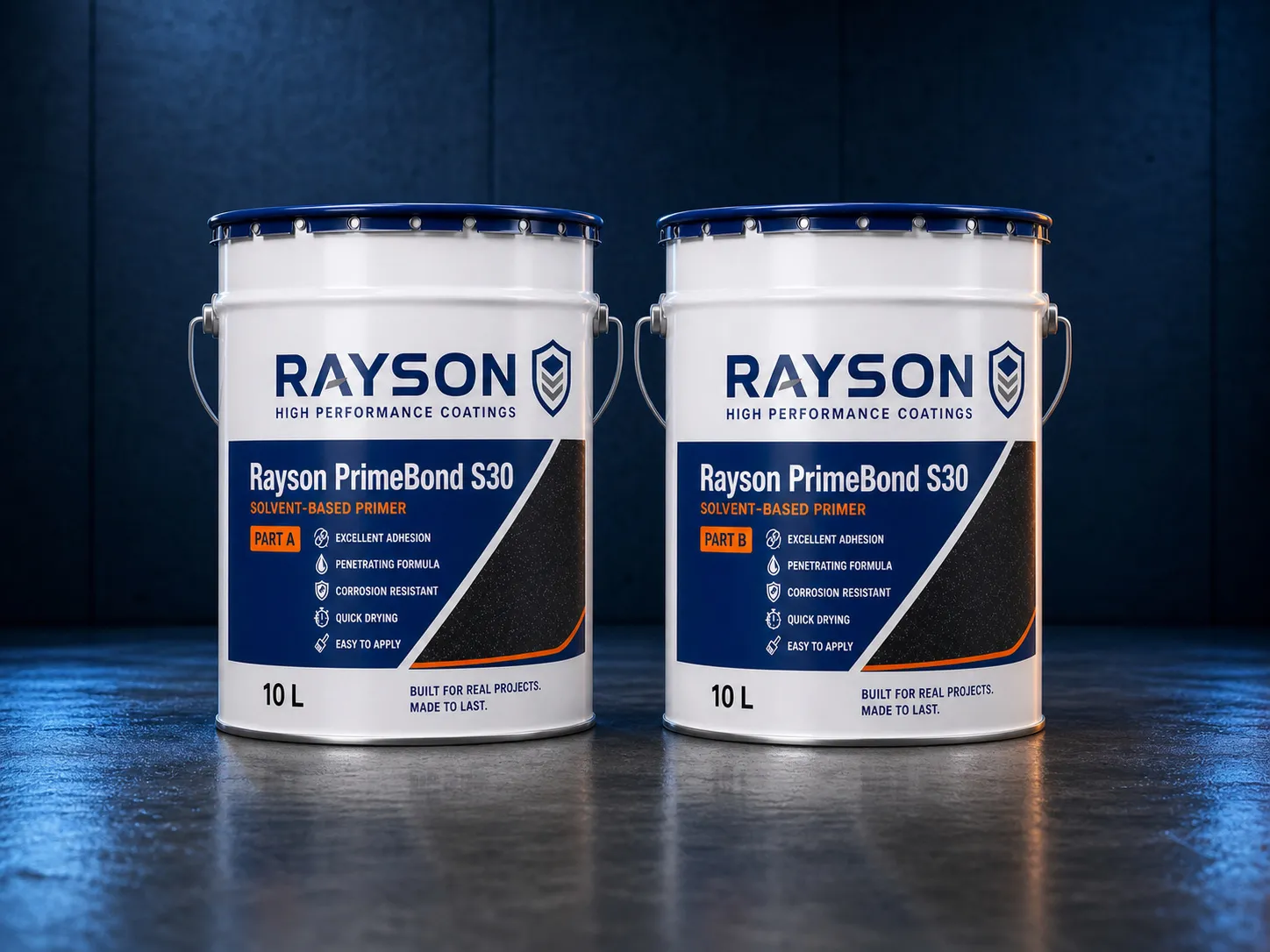

Rayson PrimeBond · Epoxy
Rayson PrimeBond S30
Rayson PrimeBond S30 is a two-part, low-viscosity, solvent-based epoxy primer that penetrates and seals prepared concrete, pavements and mineral substrates before coating.
ConcreteCement screed TDS RY-TDS-103
Best for
Best for priming dense or absorbent concrete on car park decks, ramps, walkways and industrial floors where deep penetration is needed.
PrimeBond S30 uses a low-viscosity, solvent-based epoxy formulation to soak into prepared concrete and bind the surface before the floor system goes down. The two parts mix 1:1 and react to form a long-lasting sealing coat with excellent adhesion — pull-off testing on prepared concrete produces failure in the concrete, not the primer.
Its penetration makes it well suited to dense concrete, where two thin coats wet out the surface far better than one heavy application, and to porous or highly absorbent substrates such as pavements, ramps and loading bays. The cured film shows excellent impact and chemical resistance.
As a solvent-based product, PrimeBond S30 needs adequate ventilation during application and cure. For occupied buildings or enclosed spaces where odour is a constraint, consider the solvent-free PrimeBond E20 or water-based PrimeBond W10 instead.
In Malaysia
Supplied by Epovex Coatings Sdn. Bhd., Company No. 202601042128 (1704223-A). The Malaysia launch is scheduled for 1 March 2027; confirm availability and lead time for your project. Installation through an authorised applicator in Johor, Kuala Lumpur or Penang introduced by Rayson, who quotes and warrants the workmanship, or by your own crew with Rayson’s application guidance.
Send an enquiryKey benefits
- Low viscosity for deep penetration into dense and porous concrete
- Excellent adhesion — bond strength exceeds concrete cohesion on prepared substrates
- Excellent impact and chemical resistance in the cured film
- Simple 1:1 mixing ratio
Recommended uses
- Priming prepared concrete on car park decks and ramps
- Priming pavements, walkways, loading bays and industrial floors
- Sealing existing concrete before recoating
- Priming mineral and highly absorbent substrates
Application
- Roller
- Brush
- Airless spray
| Specification | Data sheet value |
|---|---|
| Coverage | 5–6 m² per litre per coat; minimum 2 coats on normal or dense concrete — varies with substrate porosity |
| Mixing | Two pre-weighed parts, mix ratio 1:1 by weight; mix mechanically for at least 2–3 minutes; pot life up to 30 minutes at 28 °C |
| Drying and curing | Final cure 7 days; minimise heavy traffic for 8 hours after application on pavements |
| Pack sizes | Part A 10 litres / Part B 10 litres per set |
Typical systems
Dense concrete sealing
- Apply first coat of Rayson PrimeBond S30 and allow to penetrate
- Apply second coat to achieve a uniform sealed surface before the specified finish
Limitations
- Minimum substrate temperature 5 °C; curing between +10 °C and +35 °C; concrete moisture content maximum 5%
- Mixed material must be used within its pot life; cures faster in hot weather and in large batches
- Solvent-based — provide adequate ventilation; not recommended for occupied areas without ventilation control
- Not a wearing surface — must be overcoated
Not suitable for
- Occupied or poorly ventilated areas — solvent-based formulation
- Use as a finished wearing surface without an overcoat
- Substrates with moisture content above 5%
Used with
Jobs and industries
Jobs that use Rayson PrimeBond S30
Rayson-authorised applicators in Johor, Kuala Lumpur and Penang install Rayson PrimeBond S30 on these jobs and in these industries; its layer is marked in each build-up. You can also order it direct and apply it yourself, with the step-by-step guide. Each page shows how the work runs, what to send for a quotation and what decides the price.
Floor systems, laid by an applicator or bought direct
All floor systems ↗ 01 Rayson system
PU flooring
PurScreed PC70 PU-cement screed for hot, wet and chemical floors, and six UraForce PU coatings, clear or coloured, indoors and out; laid or sold direct.
- PurScreed PC70 PU-cement screed, 1.5–3 mm
- Concrete slab, prepared, coves and drains detailed
Colour that must not yellow in daylight: UraForce WB58 over an R50 body coat. Outdoors: UraForce SB72 over PrimeBond S30. The concrete look: UraForce WB60 or SB65, clear.
Quoted after inspection 02 Rayson system
Concrete floor sealer
Stop a concrete floor dusting: UraForce WB60 clear indoors, SB65 clear outdoors, or a coloured HydroShield WE40 or WE45 seal coat; laid or sold direct.
- UraForce WB60 clear polyurethane, two coats
- Concrete slab, ground, repaired and vacuumed
Outdoors and on stone: UraForce SB65 clear. A coloured seal coat: HydroShield WE40 or WE45, its own primer.
Quoted after inspectionOrder it direct, with a step-by-step guide
03 Rayson system
Epoxy floor paint
FloorGuard R50 over PrimeBond E20, or water-based HydroShield WE40, sold direct with a step-by-step guide: apply it yourself, or have the applicator do it.
- FloorGuard R50, second coat
- FloorGuard R50, first coat, 0.3 to 0.5 kg/m²
- PrimeBond E20 primer, 6 to 8 m² per kg
- Concrete at least 28 days old, ground and vacuumed
Ramps: aggregate broadcast into the first coat for grip. Water-based: HydroShield WE40, its own primer. Porches open to the sun: UraForce SB72 over PrimeBond S30.
Quoted per orderJobs in Johor
04 Rayson system
Home epoxy flooring
Garages, kitchens, living rooms and porches: plain coloured epoxy by Rayson, IFS metallic and flake finishes over Rayson primer.
- UraForce WB58 polyurethane topcoat
- FloorGuard R50 epoxy in your colour
- PrimeBond E20 epoxy primer
- Concrete floor, keyed and repaired
Metallic and flake finishes: IFS Metallic Epoxy or Epoxy Flake Lining, over the same primer.
Quoted after inspectionJobs in Kuala Lumpur and Selangor
Kuala Lumpur and Selangor ↗ 05 Rayson system
Epoxy flooring in KL and Selangor
Factory, warehouse, car park, showroom and home floors in the Klang Valley, with the Rayson system named for the traffic.
- LevelShield SL120 in the forklift aisles and loading bays
- PrimeBond E20 epoxy primer
- Factory slab, moisture- and bond-tested, ground
Storage halls, workshops and garages: FloorGuard R50, two coats. Hot washdown: PurScreed PC70. Showrooms: R50 under UraForce WB58. Open porches and top decks: UraForce SB72 over PrimeBond S30.
Quoted after inspectionBy industry, across Malaysia
Industries we cover ↗ 06 Rayson system
Car park floors
Basement, covered and open car park decks, ramps and walkways in condos, malls, offices and factories: textured epoxy, UV-stable PU and deck waterproofing.
- FloorGuard R50 sealing coat
- FloorGuard R50 broadcast with graded aggregate
- PrimeBond E20 epoxy primer
- Concrete deck, ground and moisture-tested
Pedestrian walkways: GripSafe AP12. Open top deck: UraForce SB72 over PrimeBond S30. A deck that leaks into the level below: SealForce RC30 under the wearing layers.
Quoted after inspection 07 Rayson system
Workshop and showroom floors
Service bays, wash bays and car showrooms: hard-wearing epoxy in the workshop, a colour-stable finish in the showroom.
- FloorGuard R50 epoxy, two coats
- PrimeBond E20 epoxy primer
- Concrete floor, degreased, ground and repaired
Wash bays and ramps: R50 broadcast with aggregate. Showrooms: UraForce WB58 topcoat over R50. Forecourt: UraForce SB72 over PrimeBond S30. Heaviest bays: LevelShield SL120.
Quoted after inspection The practical details
Rayson PrimeBond S30: questions people ask
Why does dense concrete need two coats?
Dense, power-floated concrete absorbs very little primer, and porous concrete absorbs unevenly. Two thinner coats achieve consistent wetting and a uniform seal, which prevents defects in the finish coats above.
Can PrimeBond S30 be used indoors?
Only with adequate ventilation during application and cure — it is solvent-based. For enclosed or occupied areas, PrimeBond E20 (solvent-free) or PrimeBond W10 (water-based) are the safer choices.
How long before the deck can take traffic?
Keep heavy traffic off for at least 8 hours after application on pavements, and note the primer itself is not the wearing surface — full return to service depends on the complete system. Confirm programme timings with our technical team.
What preparation does the concrete need?
Mechanical preparation by shot blasting, milling or diamond grinding to a sound, open surface, with weak concrete removed, defects patched and all dust vacuumed off.
Does it work on damp slabs?
Substrate moisture must not exceed 5%. For slabs that cannot meet this, PrimeBond E20 tolerates damp surfaces — discuss the slab condition with our technical team.
