Rayson MortarBond EM90 is a three-pack, solvent-free epoxy mortar — resin, hardener and graded aggregate — that reinstates concrete floors with a non-shrink, highly abrasion-resistant repair.
MortarBond EM90 rebuilds damaged concrete with epoxy strength. The three components — resin, hardener and graded aggregate — combine into a trowelable mortar that hardens without shrinkage to a compressive strength of 80 N/mm² at 7 days, well above the concrete around it.
The cured mortar is highly durable and tough, with high abrasion resistance, good adhesion and good resistance to chemicals and solvents — so patches, joint arrises and worn areas repaired with EM90 stay put under forklift traffic rather than breaking out again.
It is applied by steel trowel over a compatible epoxy primer and is typically overcoated by the floor system, keeping repairs invisible inside the finished floor.
Supplied by Epovex Coatings Sdn. Bhd., Company No. 202601042128 (1704223-A). The Malaysia launch is scheduled for 1 March 2027; confirm availability and lead time for your project. Installation through an authorised applicator in Johor, Kuala Lumpur or Penang introduced by Rayson, who quotes and warrants the workmanship, or by your own crew with Rayson’s application guidance.
Send an enquiry| Specification | Data sheet value |
|---|---|
| Mixing | Mix ratio Part A : Part B : Part C = 2 : 1 : 30 by kg; no thinner required; pot life 45 minutes at 30 °C |
| Drying and curing | Touch dry 4 hours at 30 °C; hard dry 16 hours; full cure 7 days |

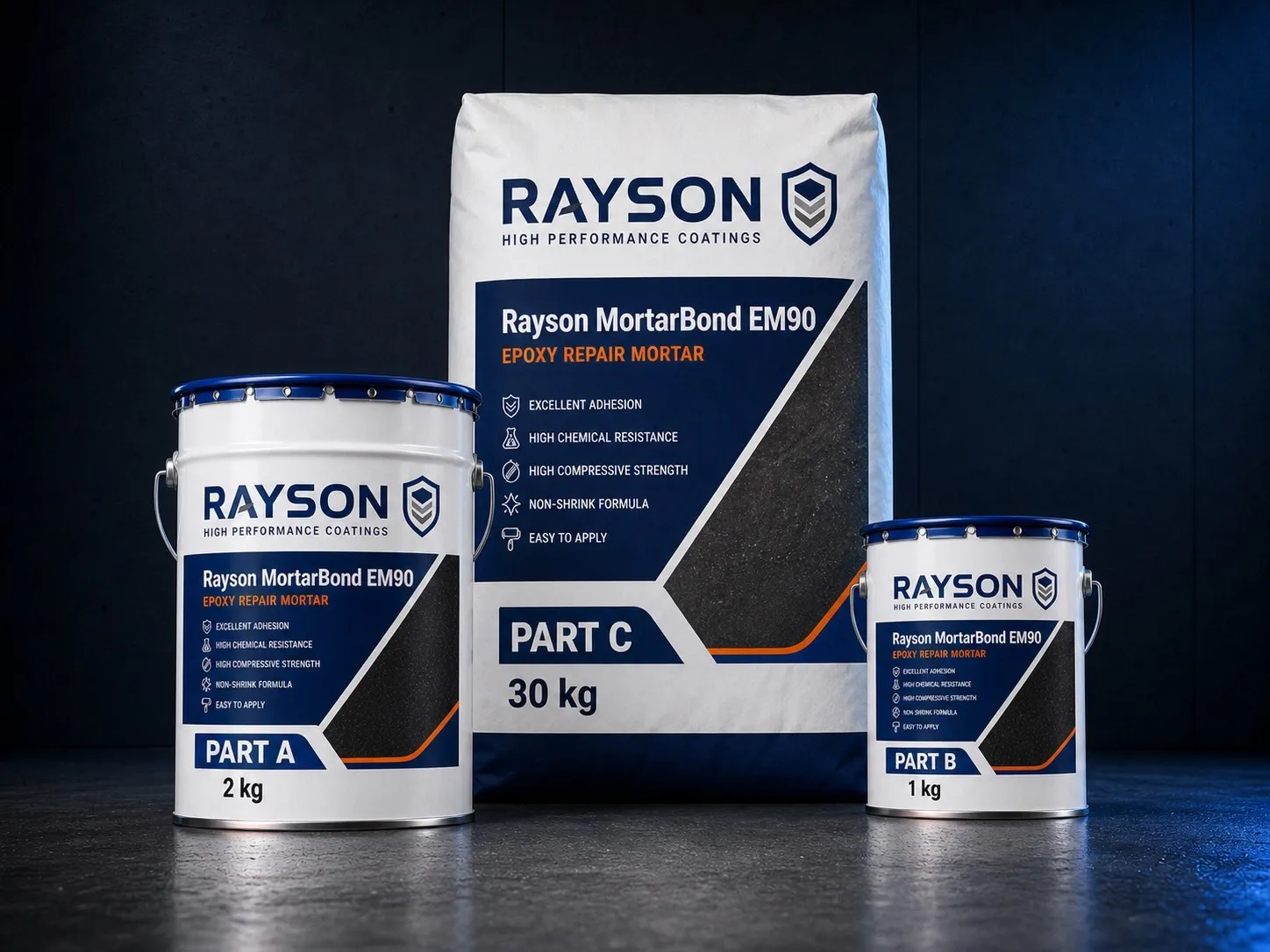

| Pack sizes | 33 kg set (Part A 2 kg resin, Part B 1 kg hardener and Part C 30 kg aggregate) |
Rayson-authorised applicators in Johor, Kuala Lumpur and Penang install Rayson MortarBond EM90 on these jobs and in these industries; its layer is marked in each build-up. You can also order it direct and apply it yourself, with the step-by-step guide. Each page shows how the work runs, what to send for a quotation and what decides the price.
Floor systems, laid by an applicator or bought direct
All floor systems ↗LevelShield SL120 over PrimeBond E20: a seamless floor for forklift aisles, production halls and clean rooms, laid by an applicator or sold direct.
Repairs first: PatchBond TX80 in cracks and joints, MortarBond EM90 in spalls. Racking zones and store rooms: FloorGuard R50 roller coats over PrimeBond E20. Hot washdown and chemical spillage: PurScreed PC70.
Quoted after inspectionOrder it direct, with a step-by-step guide
FloorGuard R50 over PrimeBond E20, or water-based HydroShield WE40, sold direct with a step-by-step guide: apply it yourself, or have the applicator do it.
Ramps: aggregate broadcast into the first coat for grip. Water-based: HydroShield WE40, its own primer. Porches open to the sun: UraForce SB72 over PrimeBond S30.
Quoted per orderJobs in Johor
Forklift aisles, production floors and loading bays in Johor’s industrial parks, specified by the maker.
Storage halls: FloorGuard R50 roller coat. A light seal coat: HydroShield WE40. Hot washdown or spillage: PurScreed PC70.
Quoted after inspectionMachining halls, timber stores, packing and container loading, finishing lines and buyer showrooms in the furniture factories of Muar and Batu Pahat.
Timber and board stores: FloorGuard R50. Showroom: R50 under UraForce WB58, or an IFS finish. Finishing lines: after the chemical check.
Quoted after inspectionJobs in Kuala Lumpur and Selangor
Kuala Lumpur and Selangor ↗Factory, warehouse, car park, showroom and home floors in the Klang Valley, with the Rayson system named for the traffic.
Storage halls, workshops and garages: FloorGuard R50, two coats. Hot washdown: PurScreed PC70. Showrooms: R50 under UraForce WB58. Open porches and top decks: UraForce SB72 over PrimeBond S30.
Quoted after inspectionBy industry, across Malaysia
Industries we cover ↗Hot washdown, wet process and dry store floors for food and beverage plants, with coves and drains detailed.
Dry stores and packing: FloorGuard R50 or LevelShield SL120 over PrimeBond E20. Walls: UraForce WB58. Water tanks and effluent pits: SealForce SP210 or SP200, sprayed.
Quoted after inspectionBasement, covered and open car park decks, ramps and walkways in condos, malls, offices and factories: textured epoxy, UV-stable PU and deck waterproofing.
Pedestrian walkways: GripSafe AP12. Open top deck: UraForce SB72 over PrimeBond S30. A deck that leaks into the level below: SealForce RC30 under the wearing layers.
Quoted after inspectionForklift aisles, racking zones and loading bays in warehouses and distribution centres, in self-levelling or roller-applied epoxy.
Racking and storage zones: FloorGuard R50 roller coats. Heavy traffic with spillage: PurScreed PC70. Broken joints and spalls: MortarBond EM90 first.
Quoted after inspectionCooking lines, dishwash and prep areas in central, hotel and restaurant kitchens: PU-cement where it is hot, epoxy where it is dry.
Cold prep, stores and corridors: FloorGuard R50 broadcast with aggregate, over PrimeBond E20.
Quoted after inspectionService bays, wash bays and car showrooms: hard-wearing epoxy in the workshop, a colour-stable finish in the showroom.
Wash bays and ramps: R50 broadcast with aggregate. Showrooms: UraForce WB58 topcoat over R50. Forecourt: UraForce SB72 over PrimeBond S30. Heaviest bays: LevelShield SL120.
Quoted after inspectionCompressive strength reaches 80 N/mm² at 7 days — several times stronger than typical floor slab concrete.
No — the epoxy binder hardens without shrinkage, so patches stay tight to their edges instead of debonding.
Yes, a compatible epoxy primer applied to the prepared repair area. Rayson recommends PrimeBond E20, with final system pairing to be confirmed by our technical team.
Indicatively hard dry in 16 hours at 30 °C, with full cure and chemical resistance at 7 days. For heavy loading, confirm timing with our technical team.
Epoxy mortars perform best at a defined minimum thickness with cut edges rather than feathering. Square-cut the repair perimeter for a durable result.
Tell us what the surface is, where it is and what it has to withstand. Rayson replies with a system recommendation; for installation, the applicator for your area in Johor, Kuala Lumpur or Penang is introduced to quote the job.
Malaysia launch: 1 March 2027. Enquiries are welcome now; supply, site assessment and installation timing are confirmed for each project.
