Crack and joint repair before coating
- Mechanically prepare the repair area and vacuum clean
- Work Rayson PatchBond TX80 well into the substrate and fill flush
- Overcoat with the specified Rayson floor system once cured
Rayson PatchBond · Epoxy

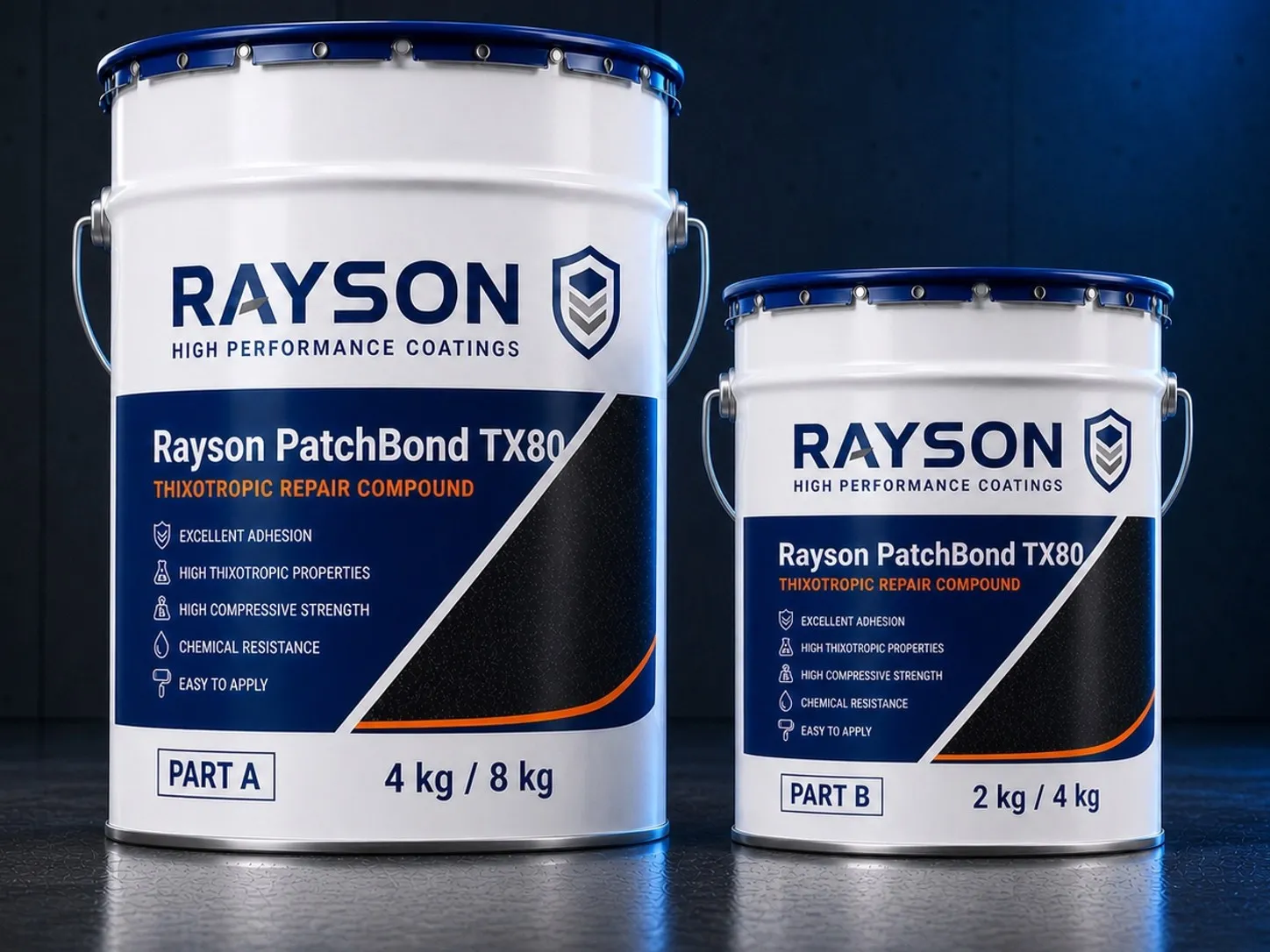

Rayson PatchBond TX80
Rayson PatchBond TX80 is a two-component, solvent-free thixotropic epoxy adhesive and repair compound with exceptional sag resistance that bonds and fills on vertical, overhead and even mat-damp concrete surfaces.
ConcreteWalls TDS RY-TDS-902
Best for
Best for non-sag repairs, crack and joint filling, and structural bonding on vertical and overhead surfaces — including damp concrete.
PatchBond TX80 is the compound for the repairs gravity makes difficult. Its thixotropic body holds at 13–15 mm on vertical surfaces without sagging, so coving, joint arrises, overhead patches and bonded fixings can be built in place rather than formed against shutters.
It bonds to an unusually wide range of substrates — concrete (including wet, mat-damp surfaces), fibre cement, natural stone, ceramics, wood, polyester, epoxy, glass, brick and masonry — and hardens without shrinkage into a film impermeable to liquids and water vapour. Quartz-filled testing records tensile strength to concrete up to 15 N/mm² and flexural strength up to 35 N/mm², with excellent impact and good chemical resistance.
Typical duties run from filling voids, cracks and joints to bonding metal profiles onto vertical surfaces, where bonded elements are propped for at least 12 hours while the epoxy grabs.
In Malaysia
Supplied by Epovex Coatings Sdn. Bhd., Company No. 202601042128 (1704223-A). The Malaysia launch is scheduled for 1 March 2027; confirm availability and lead time for your project. Installation through an authorised applicator in Johor, Kuala Lumpur or Penang introduced by Rayson, who quotes and warrants the workmanship, or by your own crew with Rayson’s application guidance.
Send an enquiryKey benefits
- Exceptional sag resistance — holds 13–15 mm on vertical surfaces
- Moisture-tolerant — bonds to mat-damp concrete
- Hardens without shrinkage; impermeable to liquids and water vapour
- High bond strength across concrete, brick, masonry and more
Recommended uses
- Filling voids, cracks and joints in concrete
- Bonding metal profiles and fixtures onto vertical surfaces
- Repairs to fibre cement, stone, ceramics, wood, brick and masonry
- Non-sag repair mortar on vertical and overhead faces
Application
- Spatula
- Trowel or notched trowel
- Gloved hand application
| Specification | Data sheet value |
|---|---|
| Coverage | Approximately up to 1.90 kg/m² per mm of thickness (theoretical, subject to conditions and porosity) |
| Mixing | Two pre-weighed parts, mix ratio 2:1 (A:B) by weight; mix with a low-speed drill and paddle for at least 3–5 minutes, avoiding aeration; pot life up to 30 minutes at 28 °C |
| Pack sizes | Part A 4 or 8 kg / Part B 2 or 4 kg per set |
Typical systems
Vertical bonding of fixtures
- Prepare both bonding faces and apply Rayson PatchBond TX80 at up to 5 mm thickness
- Position the element and prop for at least 12 hours
Limitations
- Minimum substrate temperature 10 °C; curing between +10 °C and +30 °C
- Layer thickness when bonding vertical metal profiles must not exceed 5 mm
- Bonded vertical elements must be propped for at least 12 hours
- Substrate may be mat-damp but must have no standing water
Not suitable for
- Large horizontal floor reinstatement — Rayson MortarBond EM90 is the better tool
- Substrates with standing water or active water ingress
- Applications below 10 °C substrate temperature
- Movement joints requiring a flexible sealant — cured epoxy is rigid
Used with
Jobs and industries
Jobs that use Rayson PatchBond TX80
Rayson-authorised applicators in Johor, Kuala Lumpur and Penang install Rayson PatchBond TX80 on these jobs and in these industries; its layer is marked in each build-up. You can also order it direct and apply it yourself, with the step-by-step guide. Each page shows how the work runs, what to send for a quotation and what decides the price.
Floor systems, laid by an applicator or bought direct
All floor systems ↗ 01 Rayson system
Self-levelling epoxy flooring
LevelShield SL120 over PrimeBond E20: a seamless floor for forklift aisles, production halls and clean rooms, laid by an applicator or sold direct.
- LevelShield SL120 self-levelling epoxy, about 1.6–2.0 kg/m²
- PrimeBond E20 primer, 6 to 8 m² per kg
- Concrete at least 28 days old, ground, cracks and joints repaired
Repairs first: PatchBond TX80 in cracks and joints, MortarBond EM90 in spalls. Racking zones and store rooms: FloorGuard R50 roller coats over PrimeBond E20. Hot washdown and chemical spillage: PurScreed PC70.
Quoted after inspectionWaterproofing systems, applied by an applicator or bought direct
Waterproofing in Malaysia ↗ 02 Rayson system
Cementitious waterproofing
SealForce RW1 waterproof cement for slurry coats, renders and screeds, with SealForce WB20 as the membrane where cracks move: no bitumen sheets, and the honest line where cement stops.
- Tiles, bedded and grouted with SealForce RW1
- Screed with RW1 in place of the mixing water
- SealForce WB20, two coats, where the room needs a membrane
- Concrete or render, cleaned, roughened and repaired
Walls and floors with no membrane: a slurry coat of RW1, cement and sand on the old concrete, then the render or screed with RW1. Basements and tanks: SealForce SP200, sprayed.
Quoted after inspectionOrder it direct, with a step-by-step guide
03 Rayson system
Epoxy floor paint
FloorGuard R50 over PrimeBond E20, or water-based HydroShield WE40, sold direct with a step-by-step guide: apply it yourself, or have the applicator do it.
- FloorGuard R50, second coat
- FloorGuard R50, first coat, 0.3 to 0.5 kg/m²
- PrimeBond E20 primer, 6 to 8 m² per kg
- Concrete at least 28 days old, ground and vacuumed
Ramps: aggregate broadcast into the first coat for grip. Water-based: HydroShield WE40, its own primer. Porches open to the sun: UraForce SB72 over PrimeBond S30.
Quoted per orderJobs in Johor
04 Rayson system
Factory and warehouse roof waterproofing
Large flat and metal roofs in Johor’s industrial parks, coated without stopping production.
- SealForce RC40 polyurea on exposed concrete roofs
- Primer to the data sheet
- Roof slab, laps, gutters and penetrations detailed
Metal and free-draining roofs: SealForce AC10, over an anti-corrosion primer on metal or AP05 on concrete. Hot metal and fibre-cement roofs, old bitumen: SealForce RC30. Large roofs: SealForce SP200, sprayed.
Quoted after inspection 05 Rayson system
Factory and warehouse epoxy flooring
Forklift aisles, production floors and loading bays in Johor’s industrial parks, specified by the maker.
- LevelShield SL120 self-levelling epoxy
- PrimeBond E20 epoxy primer
- Concrete slab, ground and moisture-tested
Storage halls: FloorGuard R50 roller coat. A light seal coat: HydroShield WE40. Hot washdown or spillage: PurScreed PC70.
Quoted after inspection 06 Rayson system
Furniture factory floors
Machining halls, timber stores, packing and container loading, finishing lines and buyer showrooms in the furniture factories of Muar and Batu Pahat.
- LevelShield SL120 self-levelling epoxy
- PrimeBond E20 epoxy primer
- Concrete slab, ground, joints and cracks repaired
Timber and board stores: FloorGuard R50. Showroom: R50 under UraForce WB58, or an IFS finish. Finishing lines: after the chemical check.
Quoted after inspectionJobs in Kuala Lumpur and Selangor
Kuala Lumpur and Selangor ↗ 07 Rayson system
Epoxy flooring in KL and Selangor
Factory, warehouse, car park, showroom and home floors in the Klang Valley, with the Rayson system named for the traffic.
- LevelShield SL120 in the forklift aisles and loading bays
- PrimeBond E20 epoxy primer
- Factory slab, moisture- and bond-tested, ground
Storage halls, workshops and garages: FloorGuard R50, two coats. Hot washdown: PurScreed PC70. Showrooms: R50 under UraForce WB58. Open porches and top decks: UraForce SB72 over PrimeBond S30.
Quoted after inspectionBy industry, across Malaysia
Industries we cover ↗ 08 Rayson system
Food and beverage factory floors
Hot washdown, wet process and dry store floors for food and beverage plants, with coves and drains detailed.
- PurScreed PC70 PU-cement screed, 1.5–3 mm
- Concrete slab, prepared, coves and drains detailed
Dry stores and packing: FloorGuard R50 or LevelShield SL120 over PrimeBond E20. Walls: UraForce WB58. Water tanks and effluent pits: SealForce SP210 or SP200, sprayed.
Quoted after inspection 09 Rayson system
Car park floors
Basement, covered and open car park decks, ramps and walkways in condos, malls, offices and factories: textured epoxy, UV-stable PU and deck waterproofing.
- FloorGuard R50 sealing coat
- FloorGuard R50 broadcast with graded aggregate
- PrimeBond E20 epoxy primer
- Concrete deck, ground and moisture-tested
Pedestrian walkways: GripSafe AP12. Open top deck: UraForce SB72 over PrimeBond S30. A deck that leaks into the level below: SealForce RC30 under the wearing layers.
Quoted after inspection 10 Rayson system
Warehouse and logistics floors
Forklift aisles, racking zones and loading bays in warehouses and distribution centres, in self-levelling or roller-applied epoxy.
- LevelShield SL120 self-levelling epoxy
- PrimeBond E20 epoxy primer
- Concrete slab, ground, joints and cracks repaired
Racking and storage zones: FloorGuard R50 roller coats. Heavy traffic with spillage: PurScreed PC70. Broken joints and spalls: MortarBond EM90 first.
Quoted after inspection 11 Rayson system
Data centre floors
ESD floors, plant rooms, loading bays, car parks and roofs for data centres in Johor and across Malaysia.
- StaticGuard CX90 conductive epoxy, 1.0–1.5 mm
- PrimeBond E20 primer, earthing points to the agreed layout
- Concrete slab, prepared and repaired
Plant rooms and loading bays: LevelShield SL120. Slab under the raised floor: UraForce WB60. Car parks: FloorGuard R50 broadcast system. Roofs: SealForce RC40.
Quoted after inspection 12 Rayson system
Commercial and central kitchen floors
Cooking lines, dishwash and prep areas in central, hotel and restaurant kitchens: PU-cement where it is hot, epoxy where it is dry.
- PurScreed PC70 PU-cement screed, 1.5–3 mm
- Slab, old tiles removed, coves and drains detailed
Cold prep, stores and corridors: FloorGuard R50 broadcast with aggregate, over PrimeBond E20.
Quoted after inspection 13 Rayson system
Workshop and showroom floors
Service bays, wash bays and car showrooms: hard-wearing epoxy in the workshop, a colour-stable finish in the showroom.
- FloorGuard R50 epoxy, two coats
- PrimeBond E20 epoxy primer
- Concrete floor, degreased, ground and repaired
Wash bays and ramps: R50 broadcast with aggregate. Showrooms: UraForce WB58 topcoat over R50. Forecourt: UraForce SB72 over PrimeBond S30. Heaviest bays: LevelShield SL120.
Quoted after inspection 14 Rayson system
Pharmaceutical and medical device plant floors
Production rooms, clean rooms, device assembly, washdown rooms and stores in pharmaceutical and medical device plants, with smooth, cleanable floors and walls.
- LevelShield SL120 self-levelling epoxy, coved at the walls
- PrimeBond E20 epoxy primer
- Concrete slab, prepared and moisture-tested
Walls: UraForce WB58. ESD assembly: StaticGuard CX90. Washdown rooms: PurScreed PC70.
Quoted after inspection 15 Rayson system
Electronics and semiconductor plant floors
ESD areas, production halls, wet and chemical rooms, warehouses and car parks in electronics and semiconductor plants, zone by zone.
- StaticGuard CX90 conductive epoxy, 1.0–1.5 mm
- PrimeBond E20 primer, earthing points to the agreed layout
- Concrete slab, prepared and repaired
Outside the ESD programme: LevelShield SL120. Wet and chemical rooms: PurScreed PC70. Voids and service areas: UraForce WB60 clear. Car parks: FloorGuard R50 broadcast system.
Quoted after inspection The practical details
Rayson PatchBond TX80: questions people ask
Will it sag on a wall or ceiling?
No — the thixotropic body holds around 13–15 mm on vertical faces at 28 °C without slumping, which is what it is designed for.
Can it be applied to damp concrete?
Yes, to mat-damp concrete with no standing water — the formulation is moisture-tolerant and builds durable bonds on wet substrates.
Why must mixing avoid aeration?
Whipped-in air weakens the compound and leaves voids in the repair. Mix with a low-speed drill for 3–5 minutes rather than a fast one.
How long must bonded fixtures be supported?
Prop vertical bonded elements for at least 12 hours while the epoxy develops handling strength.
When has it fully cured?
Test values reference 7-day curing; check the full cure schedule with our technical team for load-critical work.
TX80 or EM90 — which repair product do I need?
TX80 for vertical, overhead, damp or bonding work where sag resistance matters; EM90 for horizontal floor patches needing maximum compressive strength under traffic.
